1)ADC clockrate,
sample per second(sps)
ADC clock=
xtal freq.(osc freq.)/division factor
ADC Prescaler
selection
ADPS2
|
ADPS1
|
ADPS0
|
Division Factor
|
0
|
0
|
0
|
2
|
0
|
0
|
1
|
2
|
0
|
1
|
0
|
4
|
0
|
1
|
1
|
8
|
1
|
0
|
0
|
16
|
1
|
0
|
1
|
32
|
1
|
1
|
0
|
64
|
1
|
1
|
1
|
128
|
example:
XATL =8Mhz,
division factor=128, normal conversion = 13 cycles
ADC clock =
8Mhz /128 = 62500hz = 62.5Khz ==> T =16us
sample per
second(sps) = ADC clock/13 = 62500hz/13 = 4807.692hz ==> T=208us
ADC clock = 200
kHz , SPS=??
sample per
second(sps) = 200000/13 = 15384.615hz, around 15Khz
example:
ADC clock = 50
kHz , SPS=??
sample per
second(sps) = 50000/13 = 3846.154, around 3.8Khz
note:
The successive approximation circuitry requires an input clock frequency
between 50kHz and 200 kHz to achieve maximum resolution, 10 bits resolution.
If a resolution of lower than 10 bits is required, the input clock
frequency to the ADC can be higher than 200 kHz to achieve a higher sampling
rate. At 1MHz it is possible to achieve eight bits of resolution maximum.
example:
XATL =8M hz, division factor=64(or
128), normal conversion = 13 cycles
XATL =
ADC clock = 8Mhz /64 (or 128) = 125000hz (or 62500hz)
sample
per second(sps) = 125000hz (or 62500hz) /13 =9615 (or 4807) SPS
example:
System Clock =16M hz, ADC Prescaler = 128, normal conversion
= 13 cycles
System Clock =
ADC Clk Freq = 125Khz ==>T=8uS
ADC conversion time = 104us (13 x ADC clk cycles)
Maximum
sample rate =sample per second(sps)= 1/104us = 9615 samples/second apprx
example:
System Clock =12.8M Hz, ADC Prescaler = 64,
normal conversion = 13 cycles
System Clock =
ADC Clk Freq = 200Khz, ==>T=5uS
ADC
conversion time = 65us (13 x ADC clk cycles)
Maximum
sample rate = 1/65us = 15385 samples/second apprx
example:
System Clock =8M Hz, ADC Prescaler = 32, normal
conversion = 13 cycles
System Clock =
ADC Clk Freq = 8MHz/32=250Khz, ==>T=4uS
ADC
conversion time = 52us (13 x ADC clk cycles)
Maximum
sample rate = 1/52us = 19230.77 samples/second apprx
example:
Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 4 (or 4Khz or 400Khz or ....)

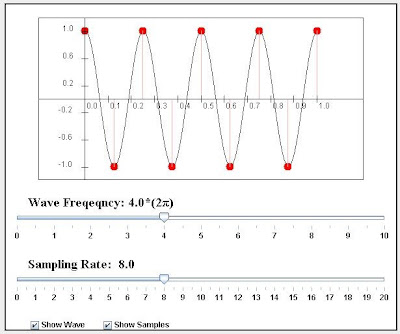

example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 8 (or 8Khz or 800Khz or ....)
nyquist rule => Sampling rate = 2 X Signal freq.
example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 16 (or 16Khz or 1.6Mhz or ....)
nyquist rule => Sampling rate = 4 X Signal freq.
example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 3.2 (or 3.2Khz or 320Khz or ....)
under sampling ==> Sampling rate = 4 /5 * Signal freq.
example: Signal = 9 (or 9Khz or 900Khz or ....)
Sampling rate = 4 (or 4Khz or 400Khz or ....)
under sampling ==>Sampling rate = 4 /9 * Signal freq.
example:
Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 4 (or 4Khz or 400Khz or ....)
example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 8 (or 8Khz or 800Khz or ....)
nyquist rule => Sampling rate = 2 X Signal freq.
example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 16 (or 16Khz or 1.6Mhz or ....)
nyquist rule => Sampling rate = 4 X Signal freq.
example: Signal = 4 (or 4Khz or 400Khz or ....)
Sampling rate = 3.2 (or 3.2Khz or 320Khz or ....)
under sampling ==> Sampling rate = 4 /5 * Signal freq.
example: Signal = 9 (or 9Khz or 900Khz or ....)
Sampling rate = 4 (or 4Khz or 400Khz or ....)
under sampling ==>Sampling rate = 4 /9 * Signal freq.
